The FlareMaster is part of ABLE’s Master Series, our portfolio of innovative flow metering solutions designed to tackle the most challenging process conditions. These systems utilise patented dual-measurement technology and intelligent algorithms to maintain accurate flow measurement during process upsets and composition fluctuations that would defeat conventional meters. Full Range:

View ABLE Master Series Product Brochure

Take advantage of our experience and expertise in multiple sensing techniques, including assistance with:

  • Installation and commissioning
  • After sales support, service and re-calibration utilising our in-house expertise
  • Product specific training from our state-of-the-art training rig either in-person or via video call.
  • Technical assistance with solutions to challenging process measurements throughout the separation chain

Further to the above, ABLE can offer custom solutions based on your individual requirements. Email us now at info@247able.com

ABLE FlareMaster FT Ultrasonic Flare Gas Metering System

Dual-Verified Ultrasonic Flare Gas Metering with Real-Time Data Repair and Velocity Extension

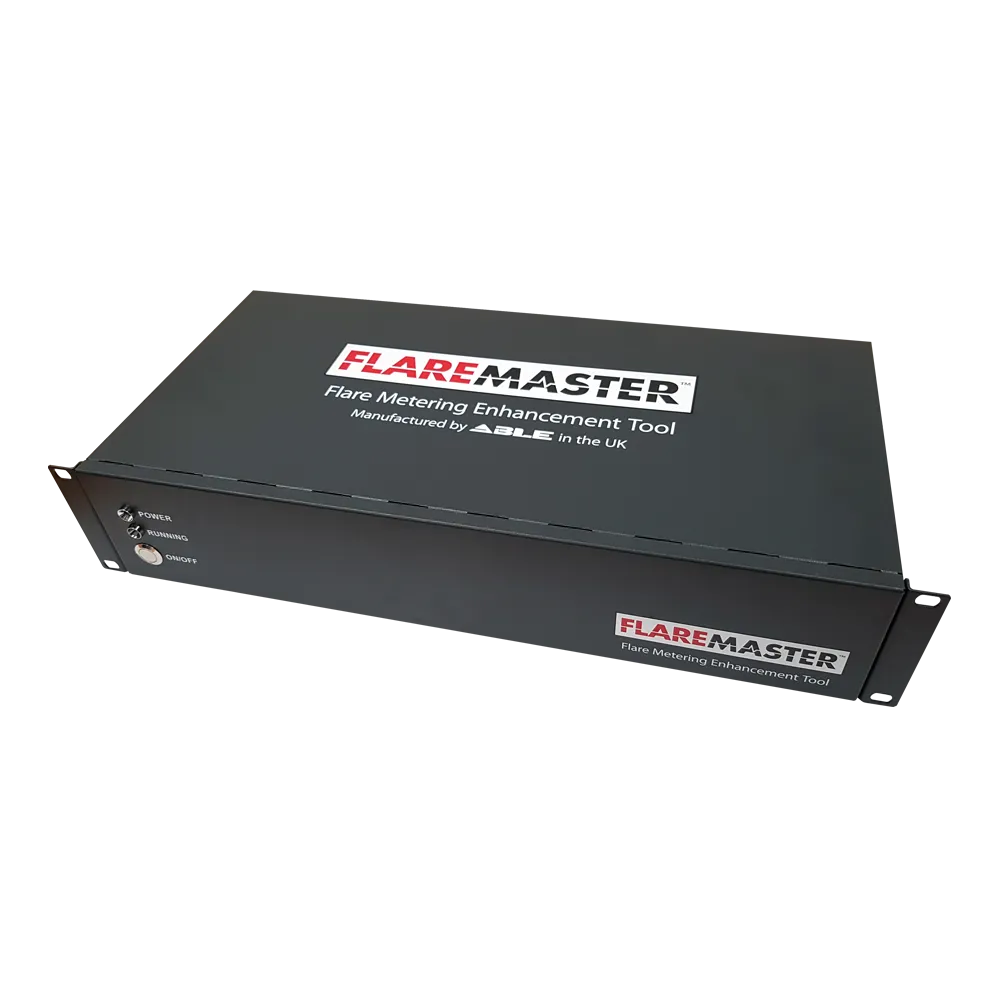

Incorporating the EDM (Enhanced Density Module) and the DataFlow Data Analysis System, the ABLE FlareMaster is a highly innovative Flare Metering Enhancement Tool. ABLE Instruments proudly presents the ABLE FlareMaster Ultrasonic Flare Gas Meter, engineered with several unique features that enhance performance. One key innovation is its dual redundancy supervisory system, which acts as a measurement augmentation tool to address common issues such as transducer contamination and the loss of measurement at high gas velocities.

As the first SIL 2-rated flare gas meter, the FlareMaster FT is capable of accurately measuring flare gas flow velocities reaching several hundred metres per second. Its compact flow transmitter design allows for seamless retrofitting to any existing flare line nozzle configuration, ensuring broad compatibility and reliable performance.

FlareMaster is a modular system designed as a bolt on-bolt enhancement system that will work with any manufacturers ultrasonic flare meter, or it can be an integral part of our own ABLE FT flare meter.

Features:

  • Industry-Leading Safety Certification: The only flare flow meter available with SIL2 rating.
  • Hazardous Area Ready: Certified for use in ATEX Zone 1 environments.
  • Exceptional Measurement Precision: Achieves ultra-low error rates—down to ±0.034% in density, molecular weight, and mass flow calculations.
  • Regulatory Compliance Built In: Fully traceable to AGA10 and API standards and compliant with upcoming measurement tier regulations.
  • Methane Emissions Reduction Support: Designed to assist with methane combustion efficiency in line with evolving EU legislation.
  • N2GEN™ Gas Composition Analysis: Advanced software automatically subtracts nitrogen to accurately determine methane concentration and gas composition.

Have a particular project in mind? We’d welcome a call on +44 (0) 1189 169 420

New FlareMaster developments, which are being driven mainly by the new EU Methane Emission Laws (Effective May 2024), have resulted significant measurement improvements by quantifying the gas composition. The new legislation requires the energy sector to monitor, report and verify methane emissions. The FlareMaster N2GEN is a breakthrough technology that utilises spectral analysis to determine gas composition, with a focus on nitrogen and methane. It delivers highly accurate measurements of density, molecular weight, and mass flow, achieving error margins as low as ±0.034%. By eliminating the need for external gas analysers, it reduces both operational costs and engineering constraints. Additionally, it complies with traceable standards such as AGA10 and API, ensuring it meets current and future regulatory thresholds.

In summary: ABLE’s FlareMaster and N2GEN technologies address critical issues in flare measurement accuracy, comply with new regulations, and support the industry’s drive toward net-zero emissions. This reduced uncertainty greatly improves the flow velocity measurement.

Did you know? The ABLE FlareMaster FT is the only SIL rated flare meter on the market. View Certificate

FlareMaster System Options:

System Integration:
A flare gas metering installation requires not only a world-class flare gas meter but also, in most cases, a fully integrated metering system. ABLE’s FT ultrasonic transducers can be directly installed onto the flare line, including via hot tapping without shutting down the flare. However, the meter is often supplied spool-mounted with integrated pressure and temperature measurement for greater accuracy and ease of integration. To ensure the system meets all customer installation and project specifications, ABLE provides comprehensive design and fabrication services, along with project management and full documentation control as part of its end-to-end project management offering.

Valve Isolation:
The ABLE FlareMaster FT uses a pair of non-intrusive ultrasonic transducers, with built-in provisions allowing transducer withdrawal from the process under pressure for inspection or maintenance without requiring flare shutdown. Traditionally, this has been achieved using a single ball valve, which provides adequate isolation but lacks the enhanced safety offered by double block and bleed (DB&B) valves. DB&B valves ensure both primary and process isolation, along with a safe method for venting any gas or liquid trapped within the assembly. As a significant additional safety feature, ABLE Instruments includes double block and bleed valves with all flare gas meter proposals to meet the highest safety and operational standards.

Transmitters:
Flare gas meters should receive temperature/pressure transmitter inputs to enable the meter to calculate standard volumetric flow for maximum accuracy and optimum performance.

Spools:
ABLE instruments offer a full design and fabrication service for spool pieces. Custom spool piece design ensures:

  • Line Integrity
  • Complete ‘drop in’ prefabricated/calibrated system
  • Materials compatibility
  • Full adherence to customer specifications
  • Optimum installation for transducers and associated transmitters
  • Performance to manufacturer stated specification

Calibration:
ABLE strongly recommends that all flare gas meters be calibrated before entering service. Calibration should be carried out under conditions that closely resemble actual operating environments to ensure accuracy and reliability. This process provides the end user with a calibration curve tailored to the control system, helping to characterise the meter and reduce measurement uncertainty. Traceable calibration also confirms that the meter has been built to the required specifications and tolerances.

Hot Tapping:
ABLE provides a comprehensive hot tapping service that allows flare gas meter transducers, as well as pressure and temperature transmitters, to be installed on existing pipework without the need to empty the line. This enables a full installation to be completed without interrupting or shutting down the ongoing process.

FlareMaster DataFlow – Enhanced Data Gathering and Analysis Tool:
DataFlow is a powerful data gathering and analysis tool that enables remote monitoring and interrogation of flare gas meters (FGMs) from a safe location. It provides users with real-time displays of key process data, including mass and standard volume flow, velocity, temperature, and pressure. Historical records of both measured and calculated data are also readily accessible for analysis and reporting.

  • Enables remote interrogation and monitoring of flare gas meter (FGM) systems from a safe area
  • Provides real-time display of flare gas process data, including mass and standard volume flow, totalised flow, velocity, temperature, and pressure
  • Stores historical records of both measured and calculated data
  • Offers customisable graphs for process parameters with the ability to save graph templates
  • Supports remote alarm settings for all instruments or individual FGMs
  • Displays records of gas composition and compressibility inputs specific to each FGM

Gas Sampler:
The FlareMaster Gas Sampler is specifically designed to capture gas samples under steady-state conditions as they exist within a flare line. Each sampling cylinder features an external magnetic indicator that displays the movement of the internal piston, which accurately determines the volume of the collected sample. To ensure safety, both the process and pre-charge sides of the cylinder are fitted with rupture discs to prevent accidental overpressure. Once collected, the gas sample is analysed using a gas chromatograph to establish a detailed gas composition profile for the flare gas meter. When used in conjunction with ABLE’s FlareMaster Enhanced Density Module (EDM) software, this data provides the flare gas meter with comprehensive density inputs. This capability corrects for any variations caused by density-distorting gas compositions, thereby significantly improving the accuracy of mass flow measurements. As a result, the overall uncertainty in flare gas metering can typically be reduced by up to 5%, enhancing both performance and compliance.

ABLE FlareMaster Specifications:

OVERALL SYSTEM TECHNICAL DATA
Measured Values
Mass flow rate, volumetric flow (actual conditions), volumetric flow (standard conditions), density, molecular weight, gas velocity, sound velocity, Reynolds number

Optional N2GEN – N2% and C1% composition analysis
Measuring Paths
Single path, (Optional dual and multipath system variants)
Measurement Principle
Ultrasonic Time-Of-Flight difference measurement, (with optional FlareMaster redundancy extended flow range)
Measuring Medium
Flare and vent gas
Measuring Ranges
0,03 m/s … 120 m/s with standard usm measurement principle

Optional FlareMaster redundancy 0.5 to 500 m/s
Measuring Span
Up to 4000:1 Usm
> 10’000 with FlareMaster redundancy
Repeatability
1% usm, 2% for FlareMaster redundancy
Resolution
+/- 0.001 m/s
Uncertainty with N2GEN
Without 3rd party calibration (single and dual path):
Raw Time-Of-Flight flow velocity measurement uncertainty 1% to 2% (see note on effects of unknown profile errors)

Compensated flow velocity 2% to 3.5% based on Reynolds from gas composition to traceable standards (AGA10/API)

Actual volume flow 2% to 3.5% based on Reynolds from gas composition to traceable standards (AGA10/API)

Standard volume and mass flow rate 2.5% to 4% based on density and compressibility from gas composition (AGA10)

Spool with 3rd party calibration (dual path):
Raw Time-Of-Flight flow velocity measurement uncertainty 1% (see note on effects of unknown profile errors)

Compensated flow velocity 1% to 2% based on Reynolds from gas composition to traceable standards (AGA10/API)

Actual volume flow 1% to 2% based on Reynolds from gas composition to traceable standards (AGA10/API)

Standard volume and mass flow rate <3% based on density and compressibility from gas composition (AGA10)
Nominal Pipe Size
8” to 72”
Ambient Humidity
≤ 95 % Relative humidity
Conformities
Zone 0: ATEX: 2014/34/EU
EN IEC 60079-0:2018
IEC 61010-1:2018
EN 55016-2-3:2017

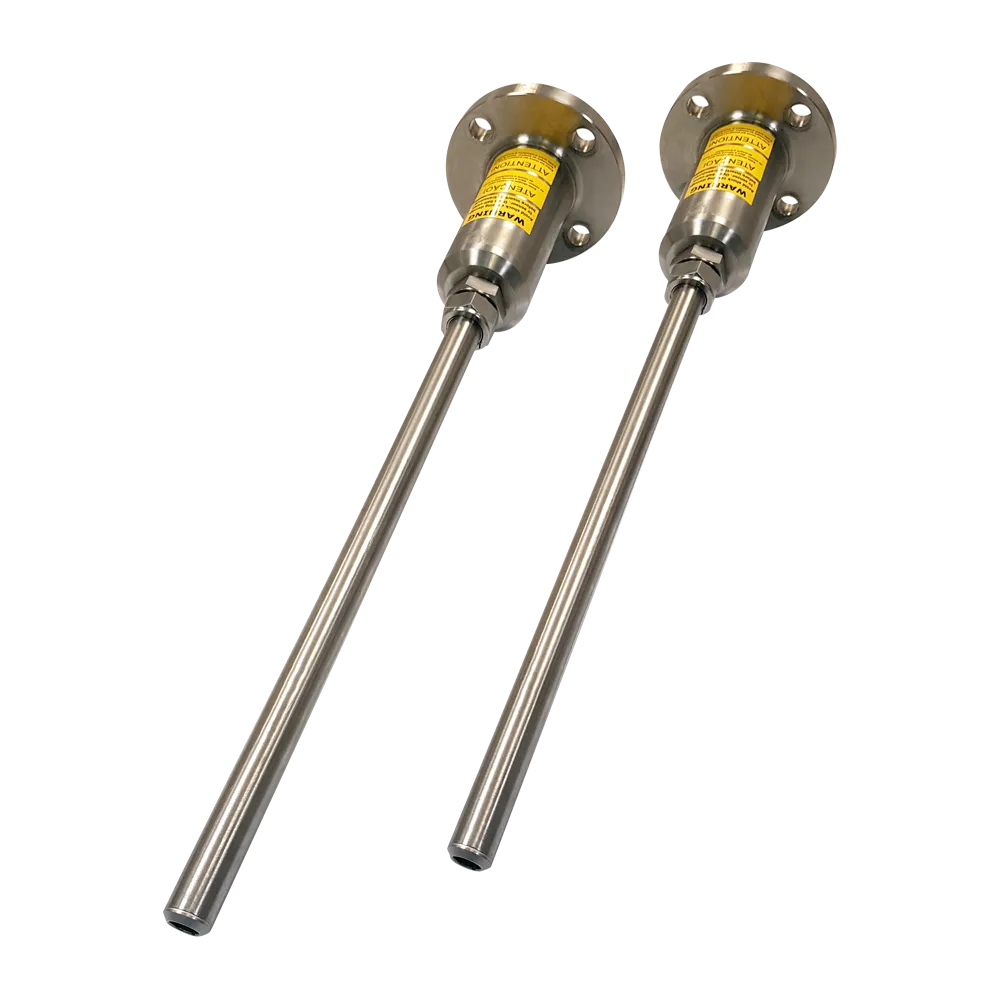

TRANSDUCERS
Gas Temperatures
Design temperature:
-150°C to 315°C ASME VIII Div.1:Ed.2017 and ASME B31.3 Standard

Operating temperature:
–70 °C to +200 °C
Operating Pressure
Flanges 150 lb:
Design pressure 20 barA, ASME VIII-1:Ed.2017 and ASME B31.3
Operating pressure 10 barA

Flanges 300 lb:
Design pressure 20 barA, ASME VIII-1:Ed.2017 and ASME B31.3
Operating pressure 20 barA
Transducer Materials
Standard:
Titanium/SS316

Operating materials:
Titanium/Hastelloy
Titanium/Inconel
Titanium/Duplex

Straight runs required:
Recommended (best practice) straight runs are 20 Upstream diameters (20D), and 5 downstream diameters (5D). However, CFD modelling is recommended to reduce effect of profile distortions.

(CFD modelling can be used in applications when there is less than the recommended straight runs)
Ex Approvals
ATEX II 1G Ex ia IIC T* Ga
T2: -110 °C ≤ +200 °C
T3: -110 °C ≤ +180 °C
T4: -110 °C ≤ +120 °C
T5: -110 °C ≤ +85 °C
T6: -110 °C ≤ +60 °C
Retraction Mechanism
Probes can be retracted during normal operation in compliance with safety rules. Retraction of probes must typically be performed under the control of a hot work permit in compliance with local regulations. Such operation must be conducted only by trained personnel.
Weight
14.5 kg (Transducer pair)

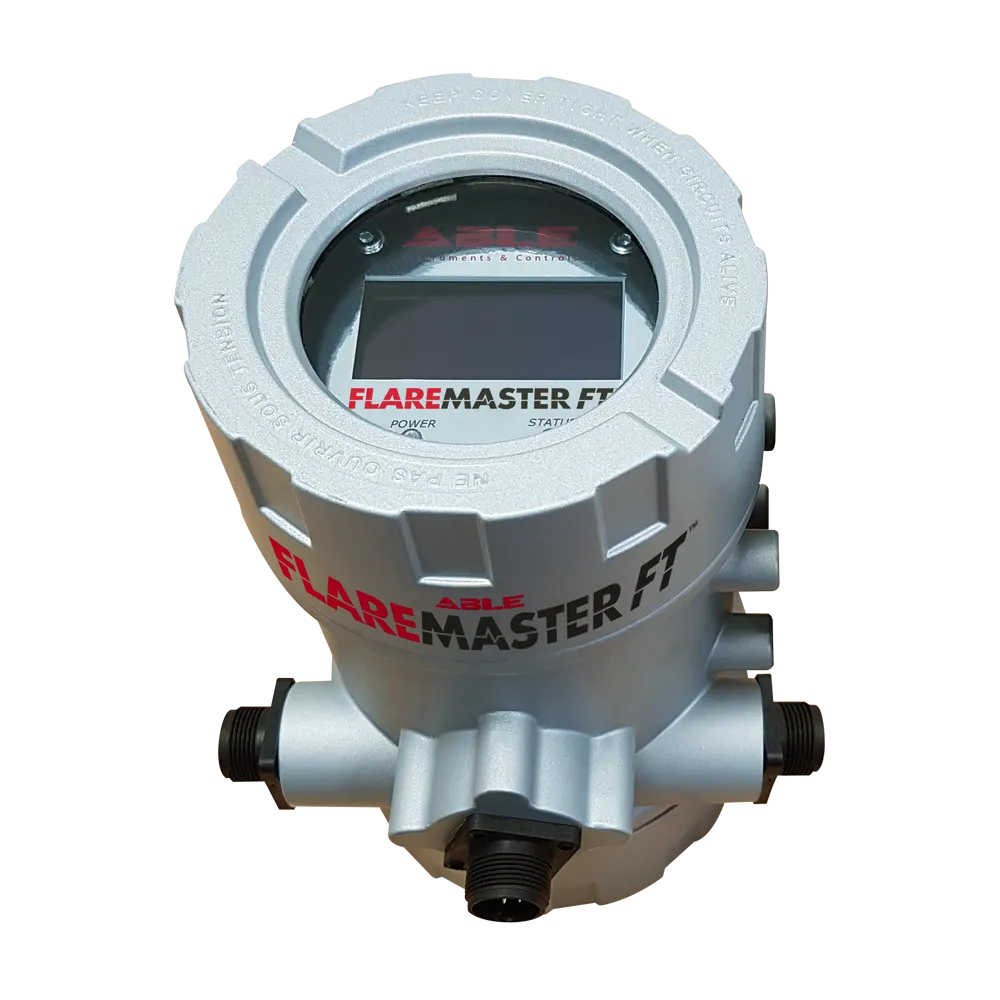

INTERFACE UNIT / FLOW COMPUTER
Description
Flow computer for controlling the ultrasonic sensors and processing and calculating flow measurement values
Ambient Temperature
–40 °C … +60 °C
Storage Temperature
–40 °C … +70 °C
Ambient Humidity
≤ 95 % Relative humidity
Ex Approvals
ATEX Ex 2(1)G Ex db [ia Ga] llC T6 Gb
Enclosure Rating
IP66
Analog Inputs
2 Hart compatible 4-20 mA current loop

In accordance with NAMUR NE43 HART (compatible) master for up to 16 external pressure and temperature transmitters, including absolute atmospheric pressure gauge.
Modbus
2 x RS-485 (Modbus RTU) Optically isolated
Indication
LCD display, main measurement values, system information, maintenance indicators, alarms
Dimensions (W x H x D)
136 x 174 x 286 mm (without brackets)
Weight
7 kg
Power Supply
Voltage:
-150°C to 315°C ASME VIII Div.1:Ed.2017 and ASME B31.3 Standard

AC option:
–70 °C to +200 °C

Frequency:
AC variant: 50 … 60 Hz
