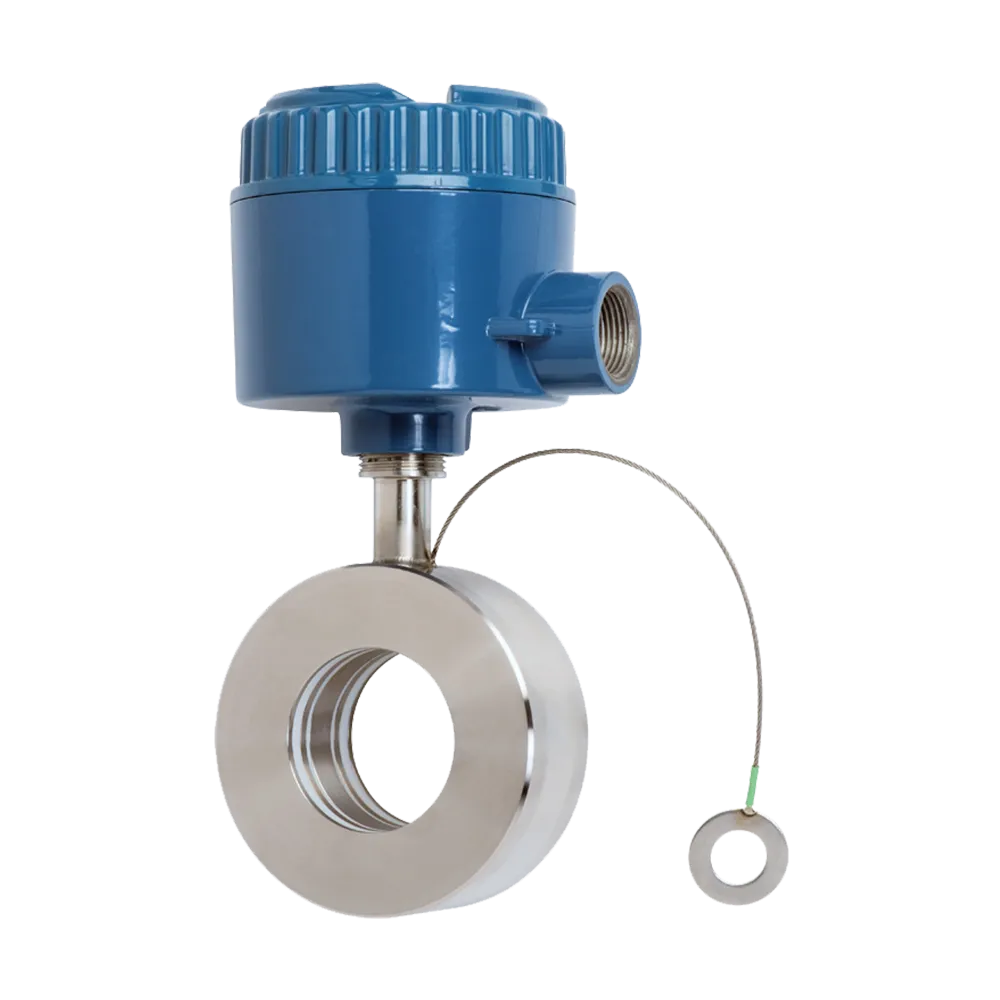

AMETEK Drexelbrook ClearLine Level Switch
Compact RF Admittance Level Switch with No Moving Parts and Coating Immunity
ABLE Instruments are AMETEK Drexelbrook’s Exclusive Representative for Sales and Service in the UK and Ireland, including the ClearLine Level Switch. The ClearLine Level Switch is a compact, low-cost point-level detector using RF admittance technology with Cote‑Shield™ coating immunity. Designed for tight spaces or vessel connections with minimal clearance, it offers reliable level detection in clear or coated liquids, slurries, and corrosive media. Its no-moving-part design ensures maintenance-free operation, while a simple potentiometer allows easy setpoint adjustment during installation—or leave it set and forget.
Key Features:
- RF admittance technology: Compact, reliable point-level detection with no moving parts
- Cote‑Shield coating immunity: Avoids false trips from residue or buildup on sensing element
- Maintenance-free design: No routine cleaning or recalibration needed
- Compact footprint: Fits into small vessels or tight mounting spots with limited clearance
- Adjustable setpoint: Simple potentiometer for fine-tuning during installation
- Versatile power options: Available in both loop-powered and line-powered configurations
- DPDT relay output: Dry-contact switching for alarms or control integration
- IP66 / NEMA 4X housing: Suitable for harsh or wet environments
Have a particular project in mind? We’d welcome a call on +44 (0) 1189 169 420
With DPDT relay output and universal power options (both loop and line powered versions available), ClearLine integrates seamlessly into control systems, alarms, or pump interlocks. It is tested to operate under process conditions up to +70 °C and ambient to around +60 °C, with IP66 / NEMA 4X housing for harsh environments. This cost-effective switch is ideal for small vessels, tank openings, and junction boxes where more sophisticated instrumentation is not required.
ClearLine Specifications:
Technology | RF Admittance with Cote‑Shield coating immunity |
|---|---|
Calibration | Manual potentiometer adjustment |
Power Supply | Loop-powered 13–30 VDC or line-powered 85–250 VAC / 18–200 VDC |
Output | DPDT relay, 5 A @ 120 VAC or 2 A @ 230 VAC |
Repeatability | ~2 mm in conductive liquids |
Response Time | <1 second |
Temperature Range | Ambient: −40 °C to +60 °C; Process: up to +70 °C |
Ingress Protection | IP66 / NEMA 4X |
Approvals | FM, FMc, ATEX, IECEx (Class I Div 1 / Zone 0) |
