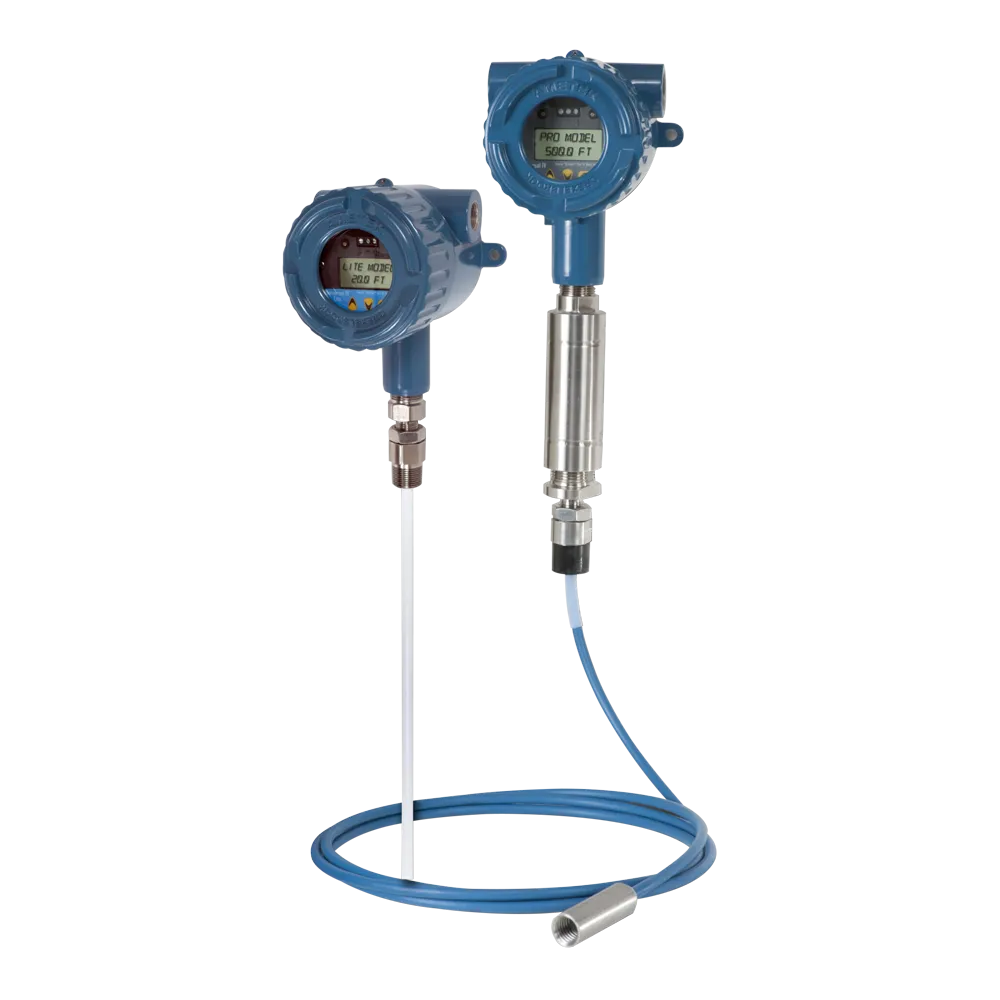

AMETEK Drexelbrook Universal V Level System
Robust RF Admittance Continuous Level Transmitter with Coating Immunity and Integral Diagnostics
ABLE Instruments are AMETEK Drexelbrook’s Exclusive Representative for Sales and Service in the UK and Ireland, including the Universal V Level System. The Universal V Level System is a continuous level transmitter leveraging RF admittance technology with patented Cote‑Shield™ coating immunity and built-in diagnostics. Designed for reliable measurement in challenging liquids, slurries or interface applications in tanks, vessels, or pipelines, it delivers stable output even in dirty or sticky fluids. Its intrinsically safe design supports custody-transfer and high-integrity systems with SIL2 (or SIL3 redundant) safety options.
Key Features:
- Continuous RF admittance output: Provides real-time level measurement in liquids, slurries or interface zones
- Cote‑Shield coating immunity: Unaffected by residue or deposits on sensing probes
- Built‑in diagnostics: AutoVerify™ continuous self-test and Manual Certify™ validation
- Flexible output options: 4–20 mA HART® loop or dual SPDT relay control outputs
- Safety integrity available: SIL2 certified; SIL3 via redundant channel configuration
- Density & temperature compensation: Ensures accurate readings under changing media conditions
- Customisable probe design: Multiple probe lengths and materials for different vessel sizes and fluids
- No moving parts: Minimises maintenance, enhances reliability in demanding environments
Have a particular project in mind? We’d welcome a call on +44 (0) 1189 169 420
Equipped with AutoVerify™ continuous diagnostics and Manual Certify™ self-test functionality, the transmitter ensures operational reliability and easy validation. Powered via 4–20 mA HART® loop or dual SPDT relays, it provides flexible output for level indication, interfaces or alarms. A choice of probe lengths and materials accommodates diverse vessel sizes and media types, while temperature and density compensation maintain accuracy in variable conditions. Ideal for oil/water interface control, storage tank level measurement, pump protection and continuous monitoring applications.
Universal V Level System Specifications:
Technology | RF Admittance with Cote‑Shield coating immunity |
|---|---|
Output Options | 4–20 mA HART®; Dual SPDT relays |
Safety Certification | SIL2 (SIL3 redundant channel), IEC61508 |
Self‑Diagnostics | AutoVerify™; Manual Certify™ |
Temperature / Density Compensation | Built-in compensation algorithm |
Probe Material/Length | Multiple options per application need |
Operating Temperature | Typically −40 °C to +70 °C |
Approvals | FM, FMc, ATEX, IECEx (Class I Div 1 / Zone 0) |
